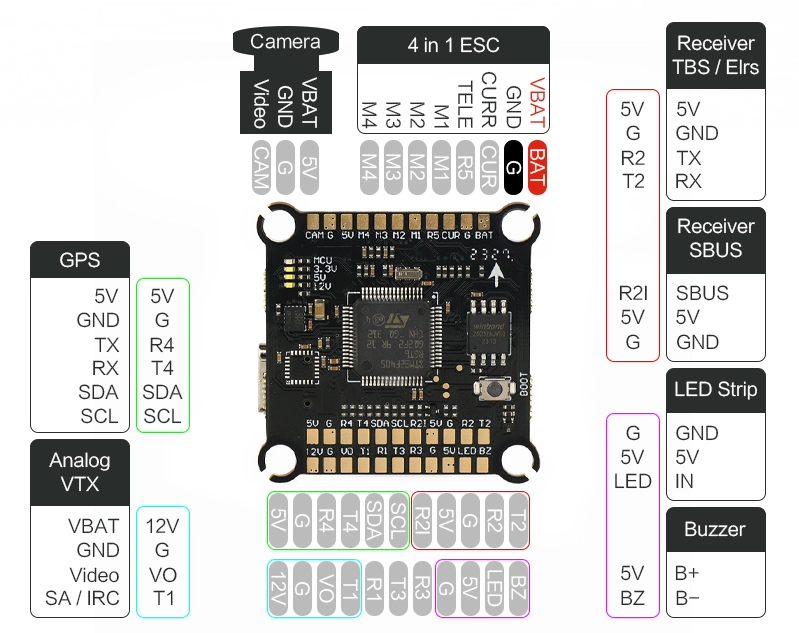

AxisFlying Argus F405 FC+ ECO 60A ESC / 30.5x30.5mm FC&ESC stack
Argus is an electronic series for Axisflying, the ESC, FC
and stack.
The lightweight Argus ECO significantly reduces the weight of the entire FPV
while providing stable and excellent control.
Special features:
The Argus ECO is significantly lighter with its aluminum housing
than the Argus Pro.
The FC supports up to 4 motor outputs, build your
Drone is very easy.
Quickly check the working status of the FC by
switch the corresponding status display on and off.
Open circuit board
Scope of delivery:
1x AxisFlying Argus Mini F7 Pro FC+ 60A ESC
1x connection cable
4x M3x30 screw
4x M3 lock nut
1x 35V 1000uF Low ESR capacitor
4x silicone grommets for FC
4x silicone grommets for ESC
1x XT60 power cable
1x connection cable for receiver
1x HD cable
1x analog cable
1x connection cable for LED & beeper
AxisFlying Argus F405 FC+ ECO 60A ESC / 30.5x30.5mm FC&ESC stack
FC goal: SPDX-SPEDIX F405 (Betaflight) MCU: STM32F405RGT6 Gyro: ICM-42688-P Input voltage: 4-6S-LiPo (14.8-26.1V) BEC: 5V/3A & 12V2A OSD: Supports UART: 1-5 Barometer: Not Supported Blackbox: 16M Size: 36x36x6mm Mounting holes: 30.5x30.5mm Weight: 7g ESC goal: Bluejay_QH30 (standard) Input voltage: 4-6S Continuous current: 60A Burst current: 70A BEC: Not Supported Telemetry: Not Supported Temperature protection: Supports current sensor: Supports
(scaling=200)
Size: 44.8x43x6mm Mounting holes: 30.5x30.5mm Weight: 13.5g
